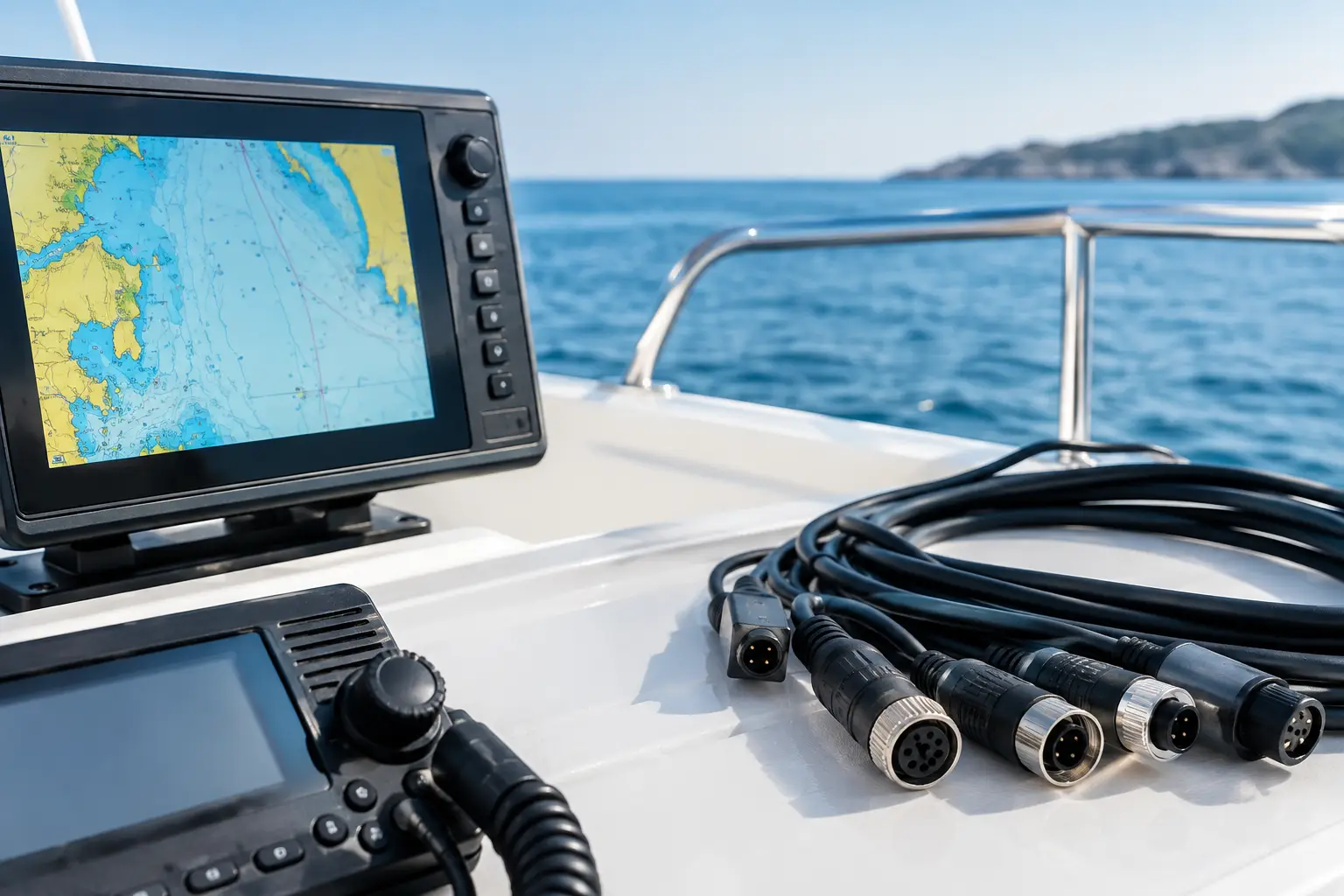

When planning a new plotter, radar, autopilot, AIS, VHF device, or battery monitoring system, the question of NMEA 0183 or NMEA 2000 is not just about the connector type. The chosen communication standard determines which data devices exchange, how diagnosable the system is, and how easily it can be expanded without dismantling the interior or adding extra wiring later.
On vessels in the Adriatic, a common practice is combining older, fully functional electronics with newer devices. Such equipment does not need automatic replacement. However, it is crucial to precisely establish what data each device sends, what it can receive, and how this communication must be adapted to the rest of the system. Incorrect integration may mean the autopilot does not receive course data, the VHF does not send position in distress calls, or the energy consumption display shows incomplete data.
Difference Between NMEA 0183 and NMEA 2000
NMEA 0183 is an older serial communication standard. It usually transmits data between one transmitter and one or more receivers via separate wires. For example, a GPS can send position data to a VHF device, and a compass can send data to an autopilot. In practice, it is communication requiring careful planning of each individual connection.
NMEA 2000 is a network standard based on CAN communication. Devices connect to a common main network bus, called the backbone, with appropriate T-connectors, termination resistors, and power supply. Every compatible device can publish data on the network, and other devices can use it if supported.
This difference affects the entire system design. With NMEA 0183, you must monitor the direction of each connection, wire pairs, transmission speed, and sentence format. With NMEA 2000, physical installation is often tidier but requires proper network dimensioning, power supply verification, and control of total cable lengths.
NMEA 0183: When It Still Makes Sense
NMEA 0183 is not obsolete in terms of usability. Many high-quality GPS receivers, AIS devices, VHF radios, wind instruments, older autopilots, and professional navigation devices still reliably use it. On vessels with a limited number of devices, it can be a fully appropriate solution.
Most difficulties arise during upgrades. Standard NMEA 0183 transmission often operates at 4,800 baud, whereas AIS communication generally requires 38,400 baud. A device may have only one input or output, but you may need to connect multiple sources and destinations. Then multiplexers, buffers, converters, or carefully selected ports on the plotter are required.
It is also important that wire labels are not universal. One manufacturer uses TX+ and TX-, another Talker+ and Talker-, and older devices may have various colors or a common ground wire. Connecting by color alone, without technical documentation and measurement, is not a reliable method.
NMEA 2000 for More Integrated Vessel Systems
NMEA 2000 is especially practical when multiple systems need to share the same data. Position, course, depth, speed, wind direction and intensity, engine data, tank levels, battery status, charging, consumption, and alarms can be available on compatible displays, plotters, or monitoring modules.
For the owner or crew, the advantage is not only more data on the screen. A well-configured system allows the same verified data source to be used by multiple devices. For example, GPS position can serve the plotter, AIS, VHF radio with DSC function, and vessel monitoring system without multiple separate serial connections.
However, NMEA 2000 is not a solution that amounts to just connecting a few factory cables. The network must have two termination resistors, one at each end of the backbone. Power must be supplied at a designated point, with appropriate fuse and conductor cross-section. The lengths of the main network and drop cables must remain within specified limits, and each device’s power consumption must be accounted for in the design.
If power is fed at the wrong point, termination resistor is missing, or the network is extended with improvised connectors, consequences are not always immediate. The system may operate intermittently, then lose data when many devices are powered on, or exhibit hard-to-reproduce errors. Such faults are the most expensive to diagnose during the season.
Compatibility Is Not Always Complete
NMEA 2000 defines the communication method but does not guarantee every device will display or process every data item on the network. Manufacturers may support different PGN messages, and some devices only receive certain data but cannot forward it or use it for automated functions.
This is especially important for autopilots, radars, engine gateways, battery monitoring systems, and digital vessel control. Before purchasing, check not only whether a device has an NMEA 2000 port, but which messages it sends and receives, whether it supports required engine or tank instances, and if it will properly integrate with existing plotters and instruments.
NMEA 0183 or NMEA 2000 on an Existing Vessel
The answer depends on the condition of your installation, not on which standard is newer. If the existing NMEA 0183 system reliably connects several key devices and you do not plan a significant expansion, targeted maintenance or proper renewal of existing connections can be a reasonable choice.
If you plan battery system monitoring, solar charging, multiple navigation displays, engine integration, advanced autopilot, digital tanks, or remote monitoring, NMEA 2000 usually provides a cleaner basis for further development. This is especially true for vessel refits where panels are opened, new cables pulled, or the main electrical installation replaced.
In many cases, the best solution is hybrid. An older device remains in use via NMEA 0183 connection, while the rest of the new system is built on the NMEA 2000 network. A converter between standards then translates only the data truly needed. Such an approach can extend the service life of existing equipment but must be designed to avoid creating duplicate GPS, course, or depth sources on the network.
What to Check Before Installation and Integration
Before selecting equipment, it is necessary to make a list of all existing devices, their models, available interfaces, and actual functions on the vessel. Equally important is determining which data the system must exchange: GPS position, AIS targets, course, wind data, depth, power status, engine data, or alarms.
Next follows inspection of the physical installation. Existing cable routes, connector conditions, the possibility to separate signal and power wires, availability of power supply, and protection against moisture, vibration, and mechanical stress are checked. A top-quality device can be compromised by a cable without strain relief, a connection behind a wet panel, or an unmarked bus making service difficult and reducing system reliability.
The network data source hierarchy must also be defined. If GPS data are simultaneously sent by plotter, AIS, and VHF, devices can display different positions or unnecessary alarms. If there are multiple course sources, the autopilot must use the one intended for its operation. Configuration after connection is not a minor detail but an integral part of commissioning the system.
Professional Verification Reduces Risk of Costly Changes
Quality marine electronics integration includes assessment of the current state, technical verification of compatibility, wiring and power circuit design, installation, configuration, and operational testing under real conditions. After commissioning, confirm key data transmission on every device, alarm operation, and system behavior after power cycling.
At UnLucky, we approach the network as part of the entire vessel, not as a separate set of connectors. Navigation, electrical system, batteries, chargers, solar systems, and consumption monitoring often share data and depend on proper power management. Therefore, recommendations are given only after reviewing the existing installation and vessel usage plans.
If you plan a refit, navigation equipment replacement, or troubleshooting communication issues between existing devices, send an inquiry with an equipment list, connector photographs, and a brief description of the desired result. Properly designed network architecture is not visible when everything works, but it proves its value precisely then. Because Luck Has Nothing to Do With It.
