LiFePO4 service battery. Check load current, chargers, available space and model-specific temperature conditions.
Availability and delivery time are confirmed with your quote.
Supplier catalogue reference: 102666
Values and conditions come from the attached datasheet; some source wording remains untranslated. Installation settings must match the exact version and its manual.

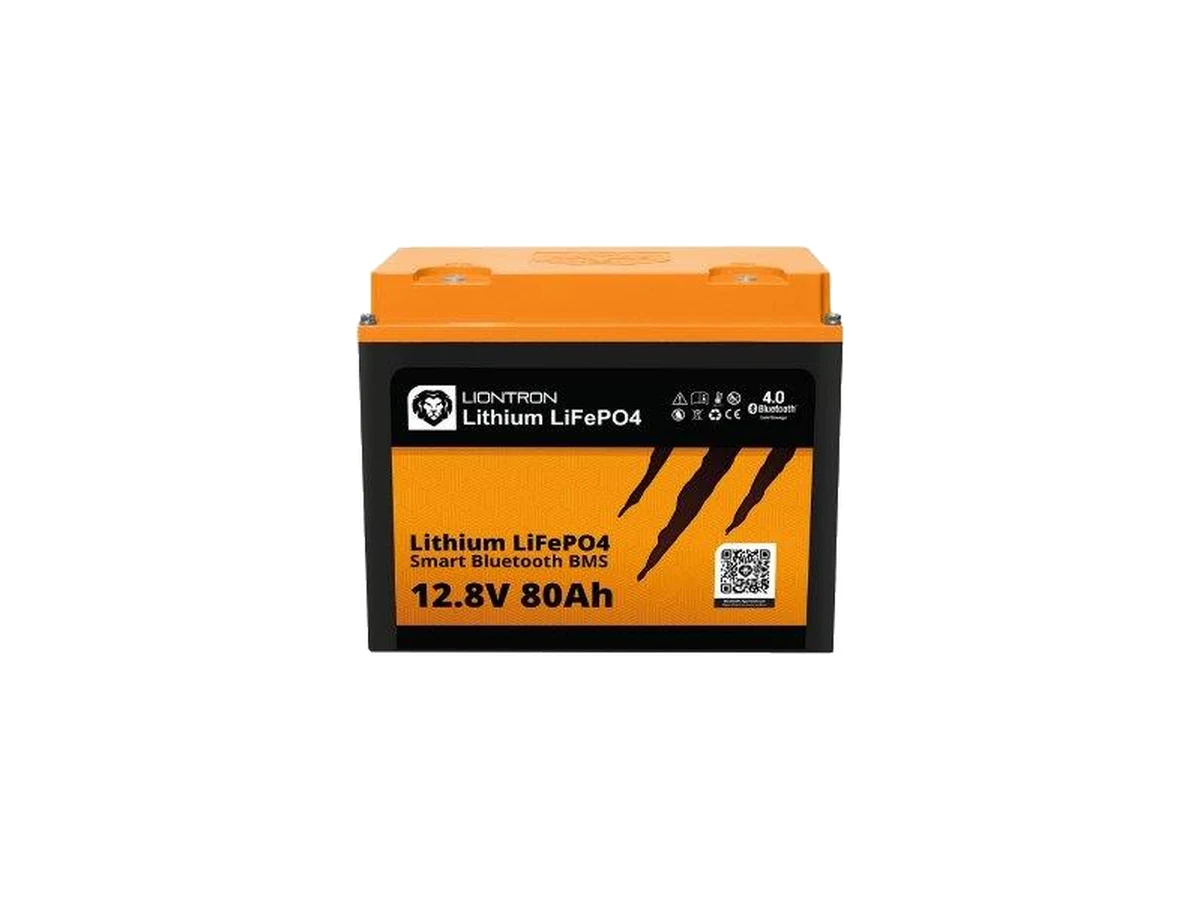

| Manufacturer model | LISMART1280LX |
|---|---|
| EAN / GTIN | 4260586370126 |
| Nominal capacity | 80Ah / 1024Wh |
| Operating voltage range | 11,0 .. 14,6V |
| Nominal voltage | 12,8V |
| Cycle life | ≥3000 bei 90% DoD |
| Charging algorithm | CCCV / IU |
| End-of-charge voltage | 14,2 – 14,6V |
| Float voltage | 13,5 – 13,8V |
| Recommended maximum charging current | 40A |
| Maximum charging current | 100A |
| Continuous discharge current | 100A |
| BMS | Integriert |
| Monitoring | Bluetooth 4.0 mit Smartphone App |
| Ingress protection | IP65 |
| Discharge temperature | -25°C .. +65°C |
| Charging temperature | -5°C .. +65°C |
| Storage temperature | -40°C .. +60°C |
| Connection | M6 |
| Terminal layout | Pluspol links |
| Manufacturer warranty | 10 Jahre Herstellergarantie |
| Weight (datasheet) | 10,8 kg |
| Dimensions L × W × H (datasheet) | 260 x 169 x 208,5 (ohne Anschluss-Schrauben) |
| Application and permitted connection | (Serienschaltung auf bspw. 24V nicht möglich) |
| Arctic version in datasheet | nicht verfügbar |
Warranty conditions, permitted use and included equipment depend on the exact version and manufacturer documentation.
Send the vessel or vehicle model, loads, existing chargers and available space. We will check compatibility and prepare an equipment and installation quote.
