Bonomi
Bonomi JOY 300 – Voltage Versions
SKU: B4C123H

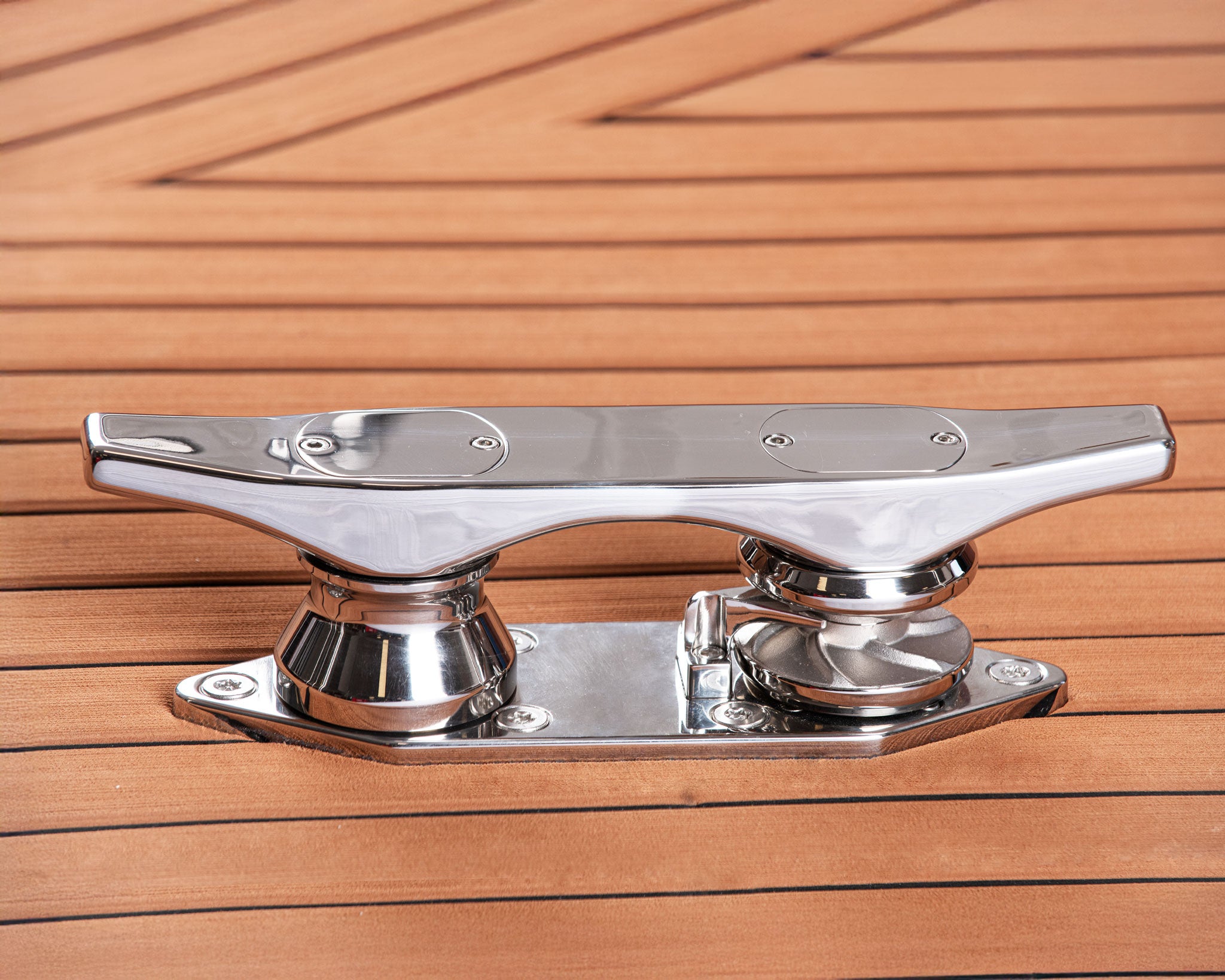

An AISI 316L stainless steel motorised cleat for larger sailing and motor boats. An underdeck motor and gearbox retrieve the mooring line using footswitch control.
Request a quote with no obligation to buy.
VAT-inclusive amounts are shown for Croatia. Price, tax treatment and delivery for your destination will be confirmed in the offer.
Description and specifications
The manufacturer suggests this model for vessels measuring 45–70 ft. Supply: 12 V / 24 V. Power: 550 W. Rope diameter: 22–30 mm. Configuration, delivery contents and installation suitability are confirmed for the vessel. Documents identify the model and voltage they cover.
- Model
- JOY 300
- Supply voltage
- 12 V / 24 V
- Cleat material
- AISI 316L
- Weight
- 23.0 Kg
- Suggested vessel length
- 45–70 ft
- Suggested vessel weight
- 20–30 t
- Power
- 550 W
- Rope diameter
- 22.0–30.0 mm
- Rated load current
- 57 A (12V) | 27 A (24V)
- Maximum current draw
- 60 A (12V) | 40 A (24V)
- Duty cycle
- S2 30 min
- Motor IP rating
- IP44
- Maximum rope speed
- 8 M/Min
- Gearbox working load
- 3120 N / 318 Kg
- Gearbox oil
- Shell Omala S4WE
- Insulation class
- F
- Configuration 1
- 12V
- Configuration 2
- 24V
