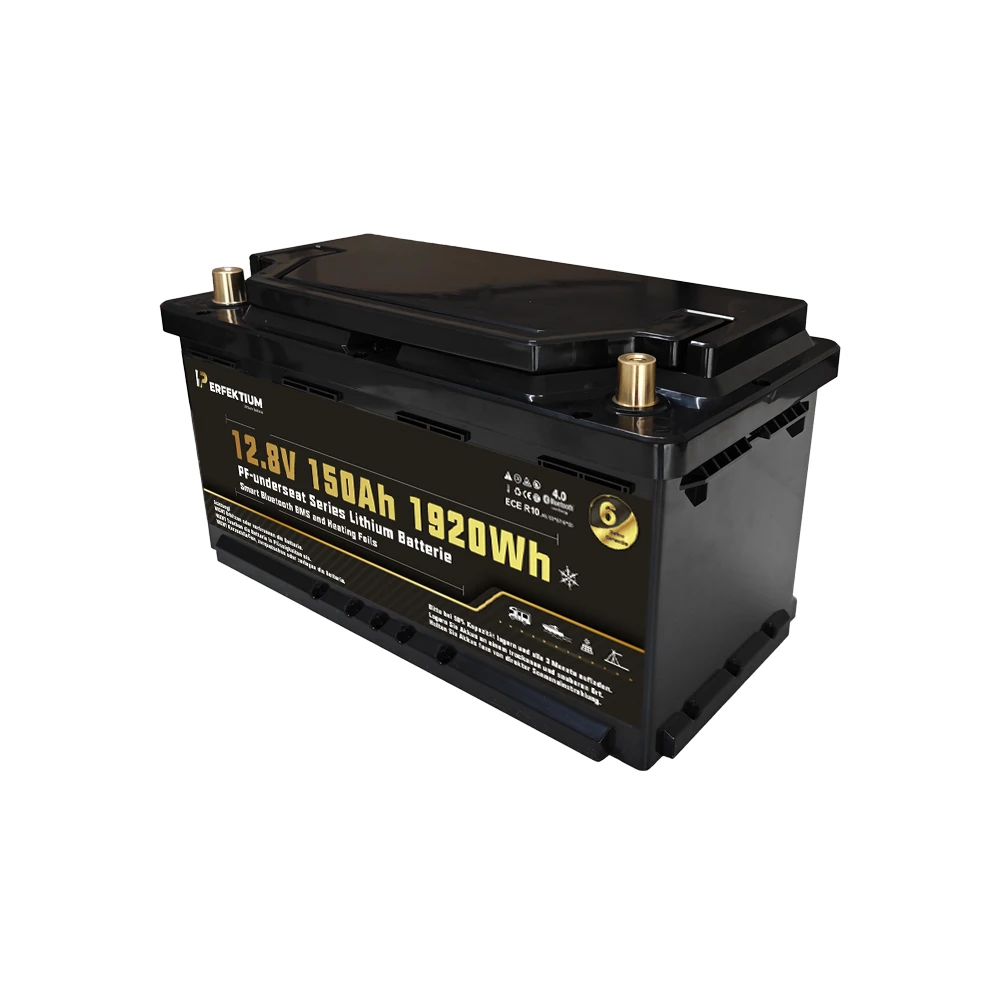

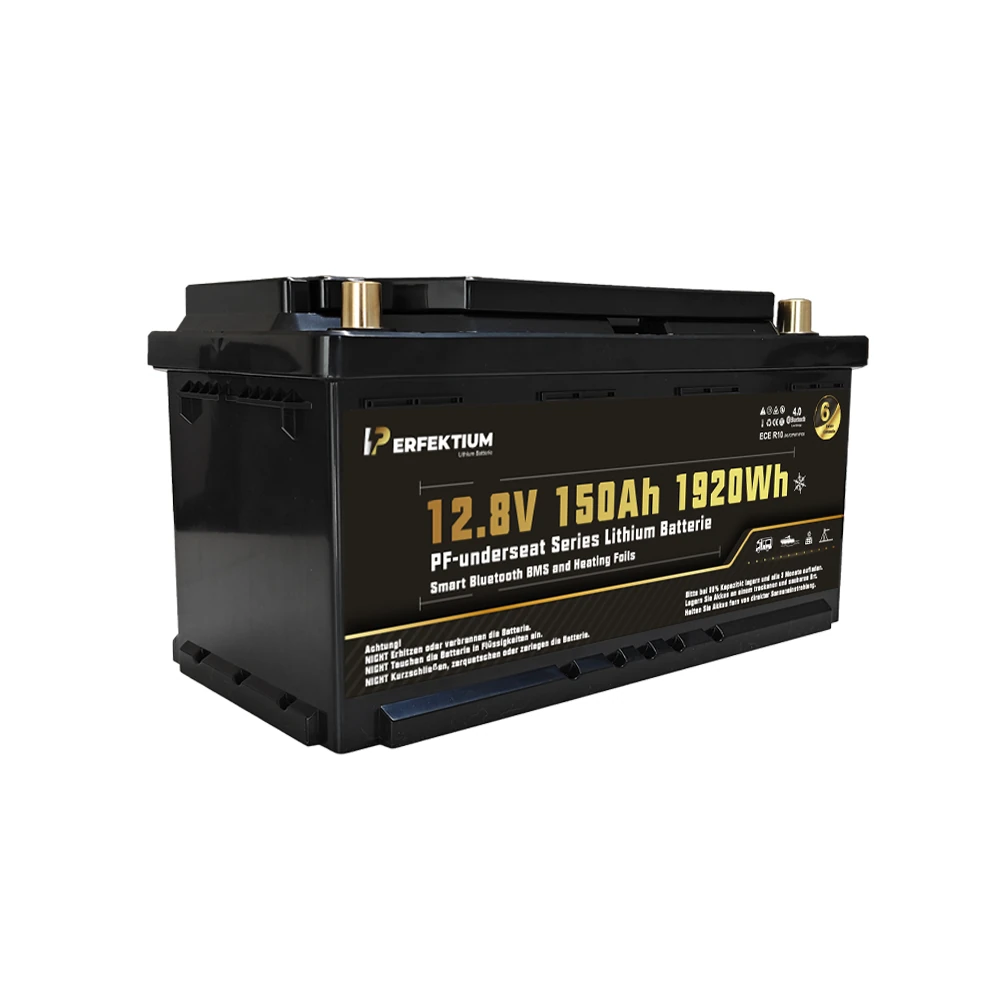

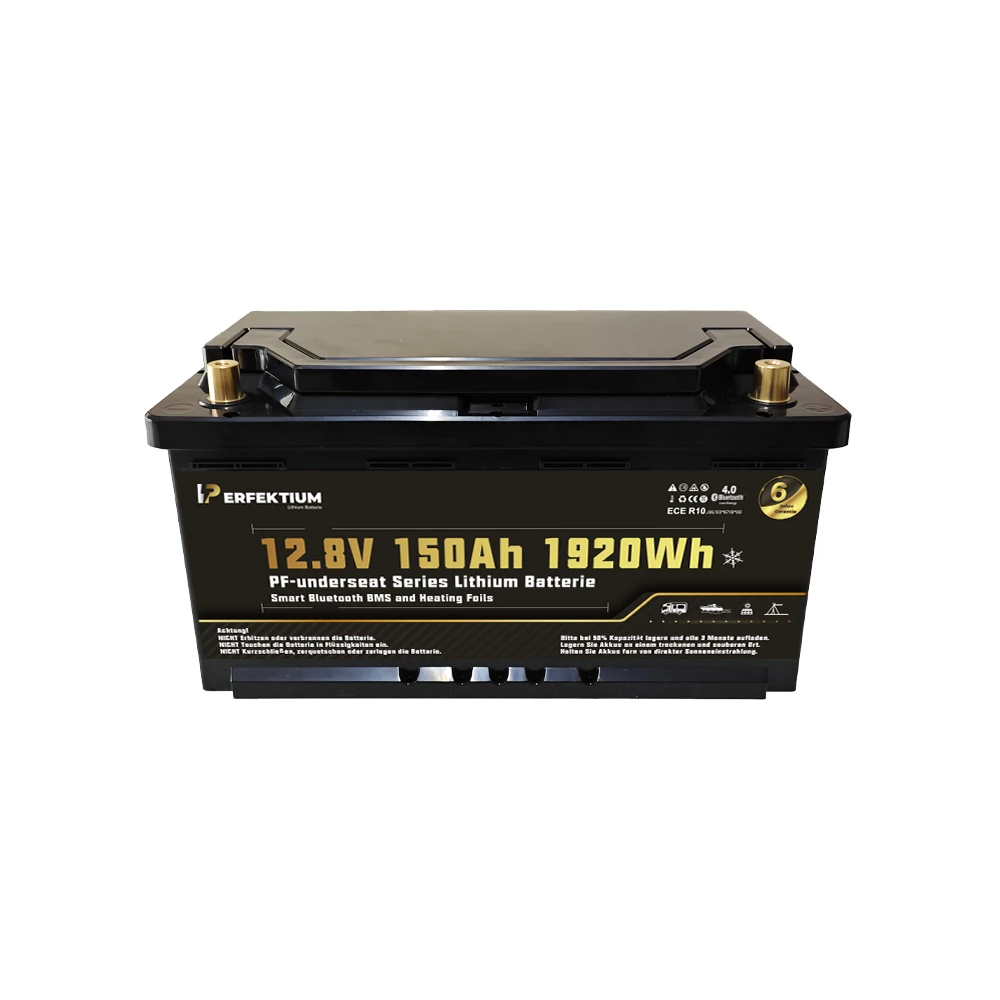

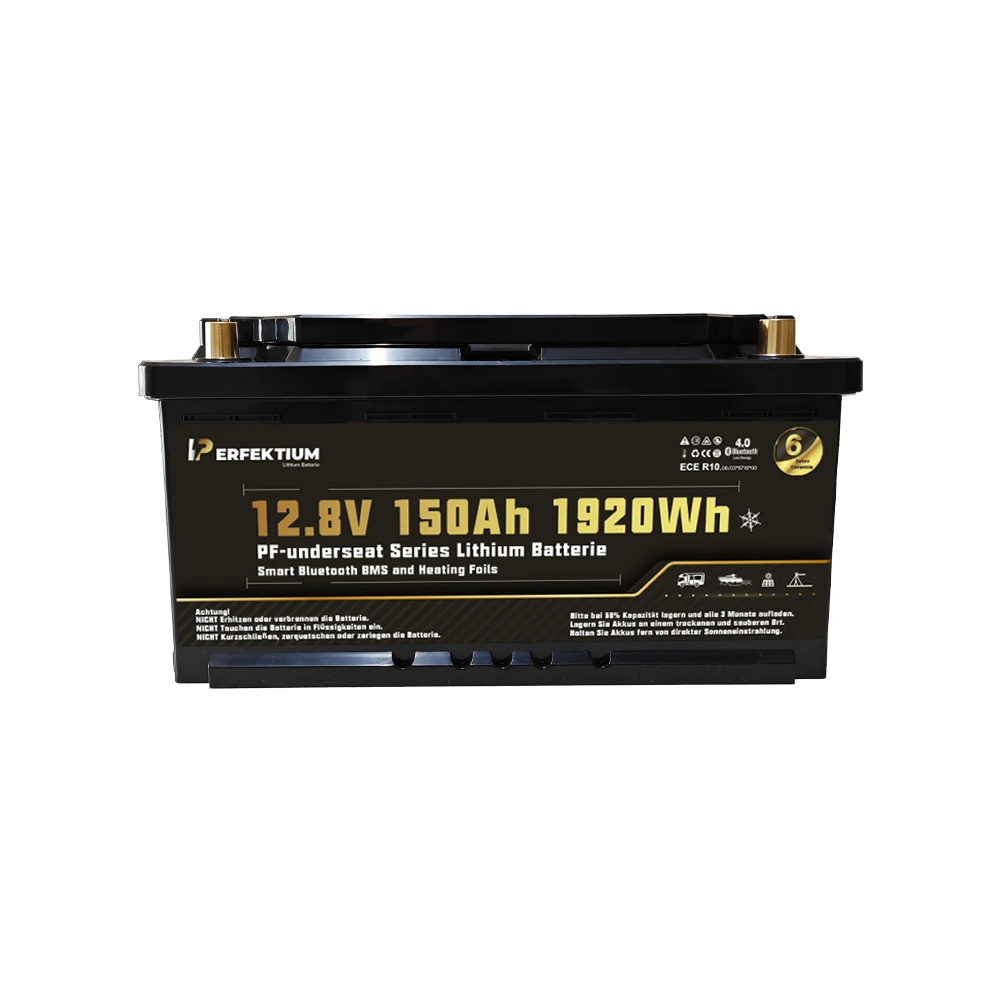

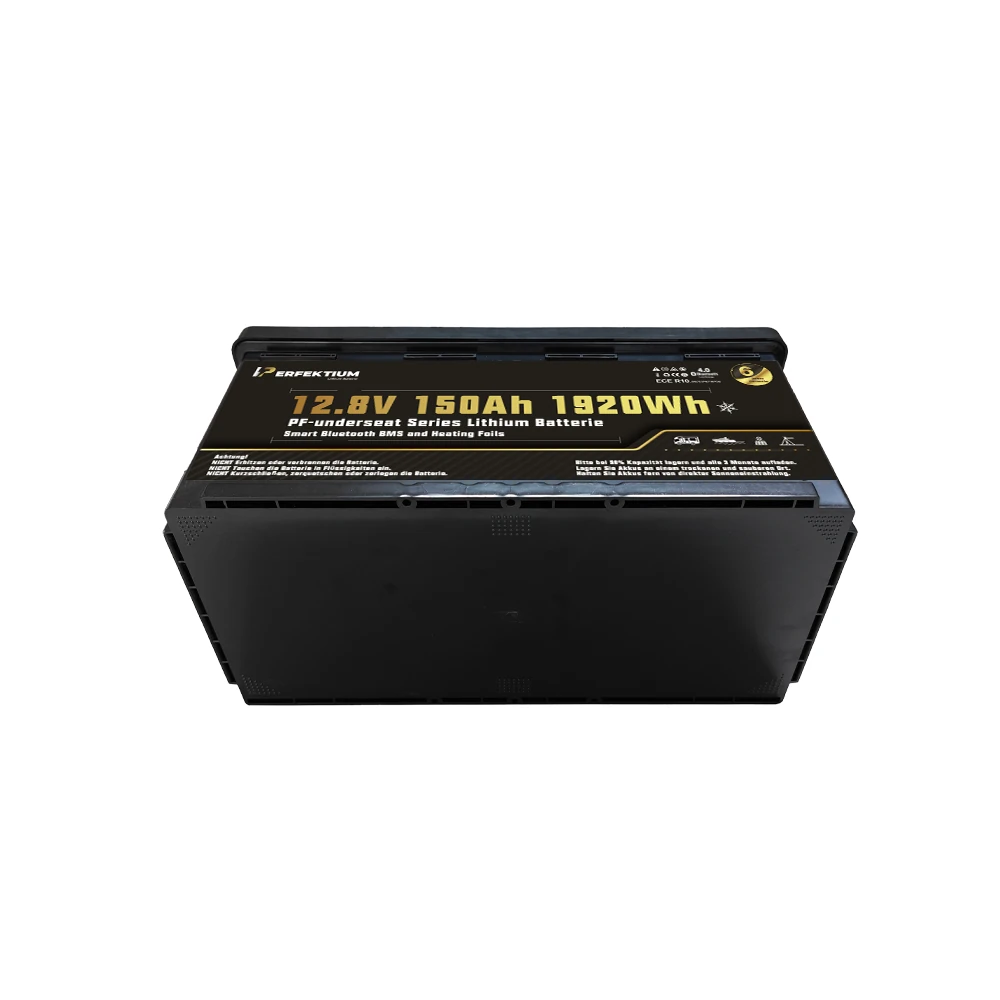

Underseat batteriesPF-Underseat-12-150H
Compact energy storage for motorhomes and installations where the available space determines the battery format.
- System voltage
- 12 V
- Capacity
- 150 Ah
- Chemistry
- LiFePO4
On requestAvailability on request
Request a quote ↗Retail price, delivery and lead time are confirmed in your quotation.
Model / SKU: PF-Underseat-12-150H
At a glance
Technical specifications
Manufacturer specifications (EN)
Manufacturer features (EN)
- 12 V system
- 150 Ah rated capacity
- Integrated BMS and Bluetooth monitoring
- 200 A continuous discharge
| Nominal voltage / capacity / energy | 12,8 V 150 Ah/1920Wh |
|---|---|
| Manufacturer-stated GEL/AGM replacement capacity | 12,8 V 300 Ah |
| Cell type | Prismatic cells |
| Dimensions including terminals (L × W × H) | 355 x 175 x 188mm |
| Weight excluding accessories | 15,6kg |
| Cycle life | >6000@80%D.o.D |
| Internal resistance | ≤7 mΩ |
| Recommended charge voltage | 14.6V |
| Float voltage (standby) | 13.8±0.8V |
| Recommended charge current | 45 A |
| Maximum charge current | 75 A |
| Continuous discharge current | 200 A |
| Peak discharge cut-off current | 600 A (200~500ms) |
| Operating voltage range | 10 – 14.6V |
| End-of-discharge voltage range | 9.2 – 11.2V |
| Terminal type | SAE-Standard |
| Ingress protection | IP65 |
| Charge temperature | 0~50°C |
| Discharge temperature | -20~75°C |
| Storage temperature | -5~35°C |
| Heater operating temperature | -35~5°C |
| Storage maintenance | Recharge every three months |
| Series and parallel connections | Maximum four batteries in series and four in parallel |
| Manufacturer-listed conformity / transport references | CE /UL /UN38.3 /MSDS /ROHS UN 3480 /CLASS 9 |
| Weight | 15,6 kg |
| Dimensions (additional attributes) | 355 × 175 × 188 mm |
| System voltage | 12V |
| Nominal capacity | 150Ah |
| Battery type | Lithium battery |
| Battery terminal | SAE |
| Case material | ABS |
| Warranty | 6 years |
| GTIN | 9331615069160 |
| Brand | PERFEKTIUM |
| Manufacturer-listed conformity / transport references | CE, MSDS, ROHS |
PF-Underseat-12-150H
Documents & downloads
Documents are provided in the languages released by the manufacturer. The document title must match the exact model and revision being supplied.
App manualEN · BLUETOOTH-PRO-MANUAL-DE
Product catalogueEN · Perfektium product catalogue (English)
DatasheetEN · Perfektium-Lithium-Datasheet-PF-Underseat-12,8 V 150 Ah-Heating-EN
ManualEN · Instructions - EN
WarrantyEN · Warranty-PF&PB-EN
App setupDE · Perfektium Bluetooth Pro APP Download INSTRUCTIONS
App manualDE · Perfektium LiFePO4 Akku Bluetooth Pro APP Handbuch- DE
DatasheetDE · Perfektium-Lithium-Datenblatt-PF-Underseat-12-150H-DE
DatasheetES · PF-Underseat-150Ah-H-ES
DatasheetFR · PF-Underseat-12-150H-FR
DatasheetIT · PF-Underseat-150Ah-H-IT
ManualDE · Handhabung und Verwendungshinweise-DE
ManualFR · Mode d'emploi - FR
ManualIT · Istruzioni - IT
WarrantyDE · Garantie- Perfektium PF&PS Serie- DE
Warranty terms vary by product. Refer to the applicable manufacturer document; coverage, installation conditions and exclusions must be checked for your model.
