LiFePO4 batteriesPB-48-150-H
Smart energy storage for marine, solar, leisure and backup applications. Match the exact battery and BMS to your loads and charging system.
- System voltage
- 48 V
- Capacity
- 150 Ah
- Chemistry
- LiFePO4
On requestAvailability on request
Request a quote ↗Retail price, delivery and lead time are confirmed in your quotation.
Model / SKU: PB-48-150-H
At a glance
Technical specifications
Manufacturer specifications (EN)
Some manufacturer information is inconsistent. Values requiring confirmation are marked below; mismatched documents are excluded. Confirm these details for the exact unit before installation.
Manufacturer features (EN)
- 48 V system
- 150 Ah rated capacity
- Integrated BMS and Bluetooth monitoring
- 200 A continuous discharge

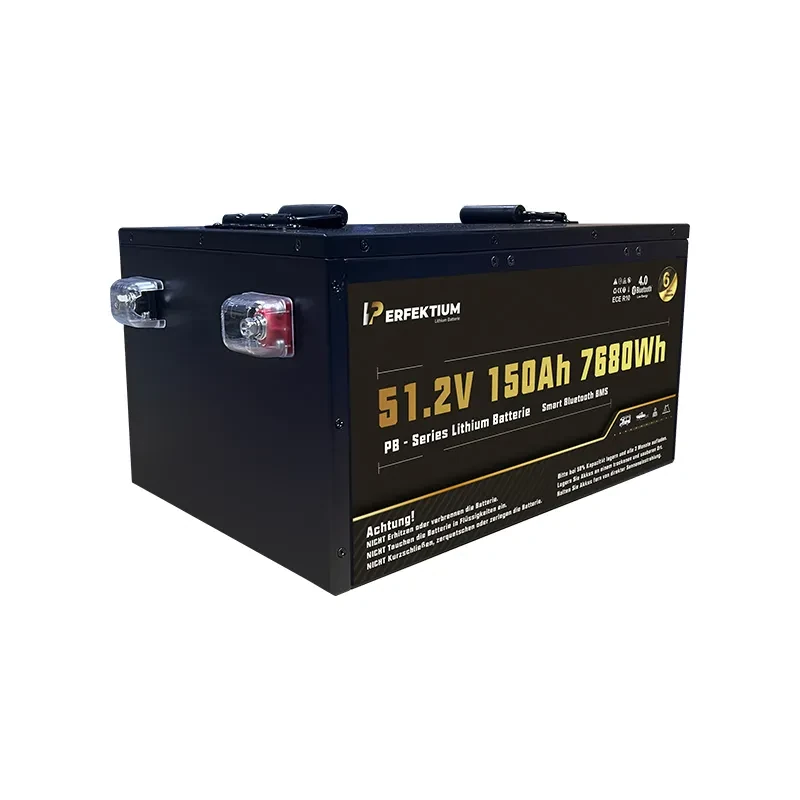

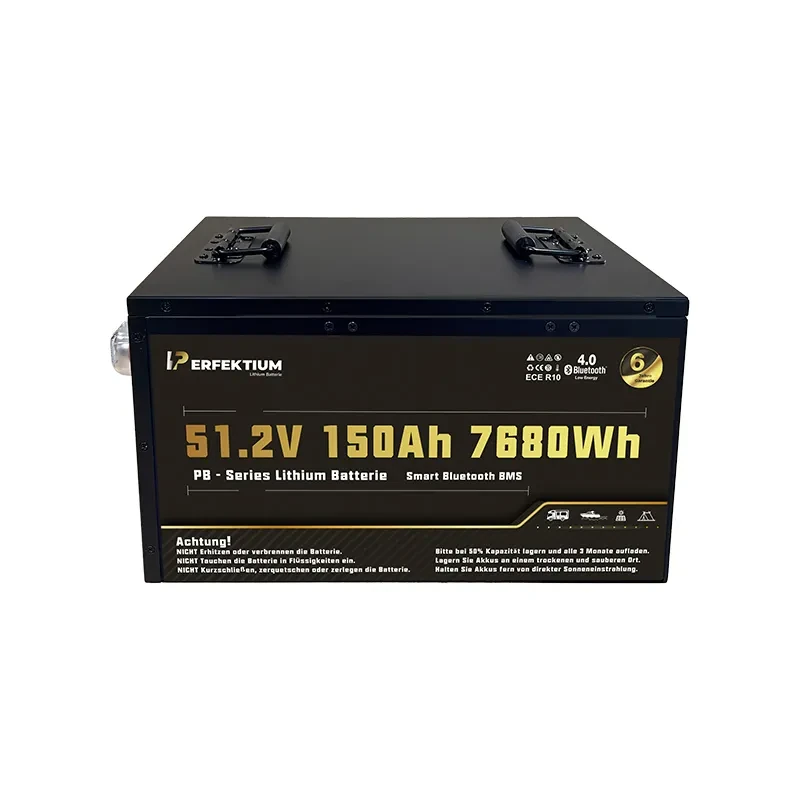

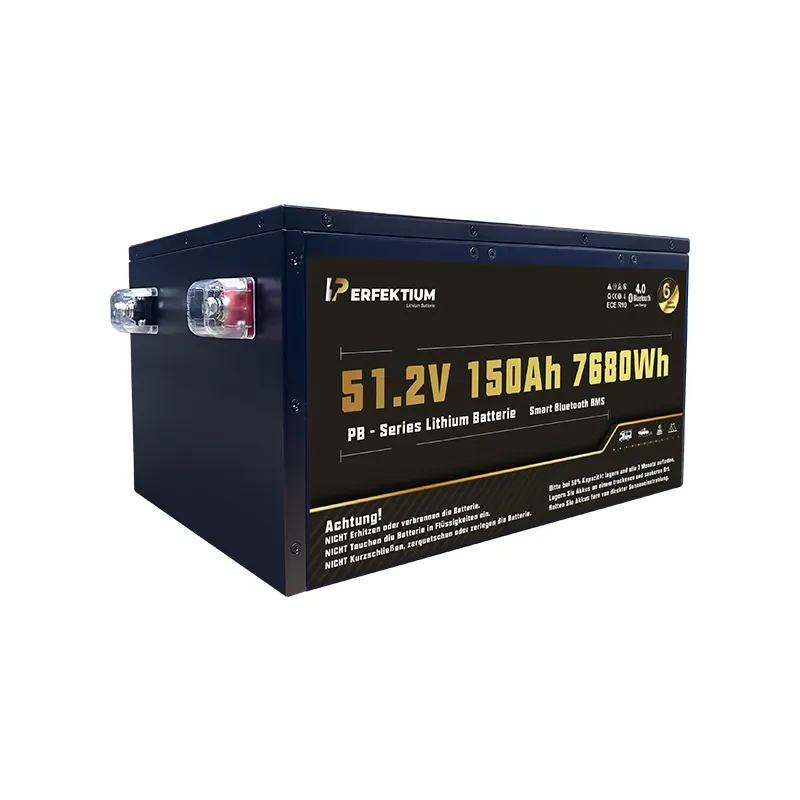

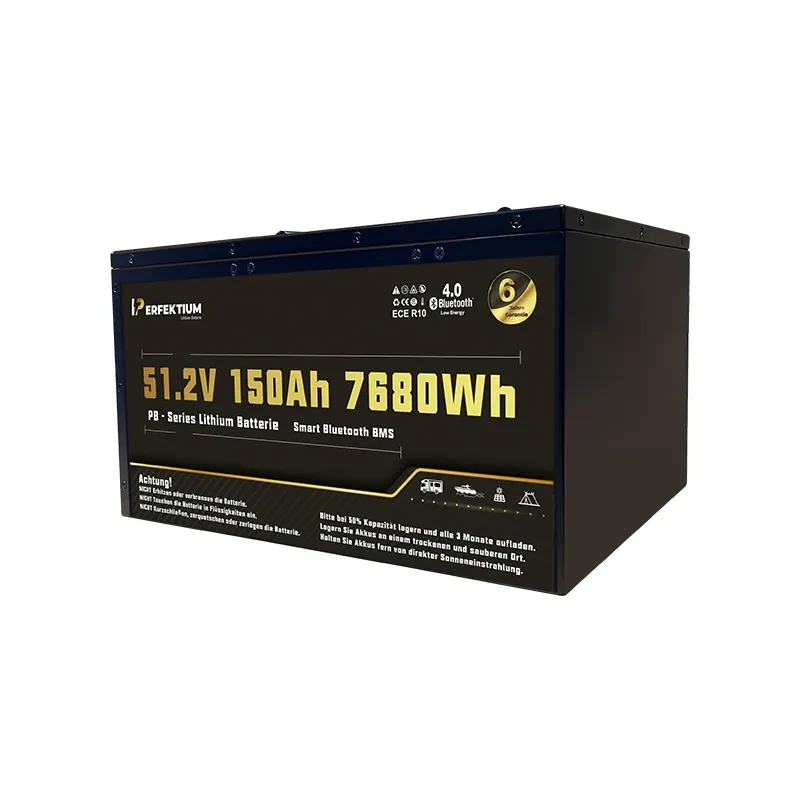

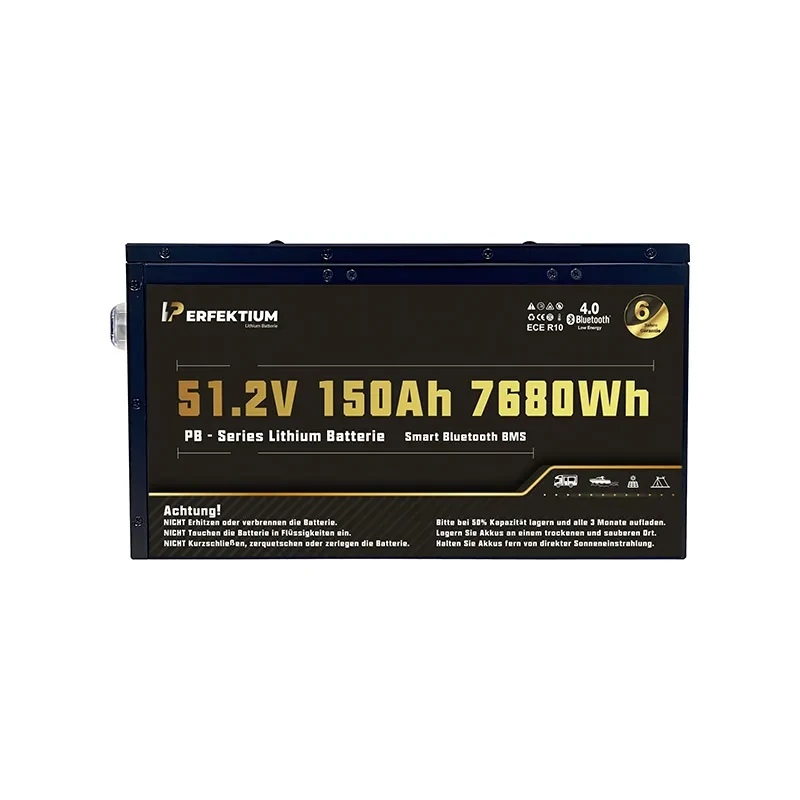

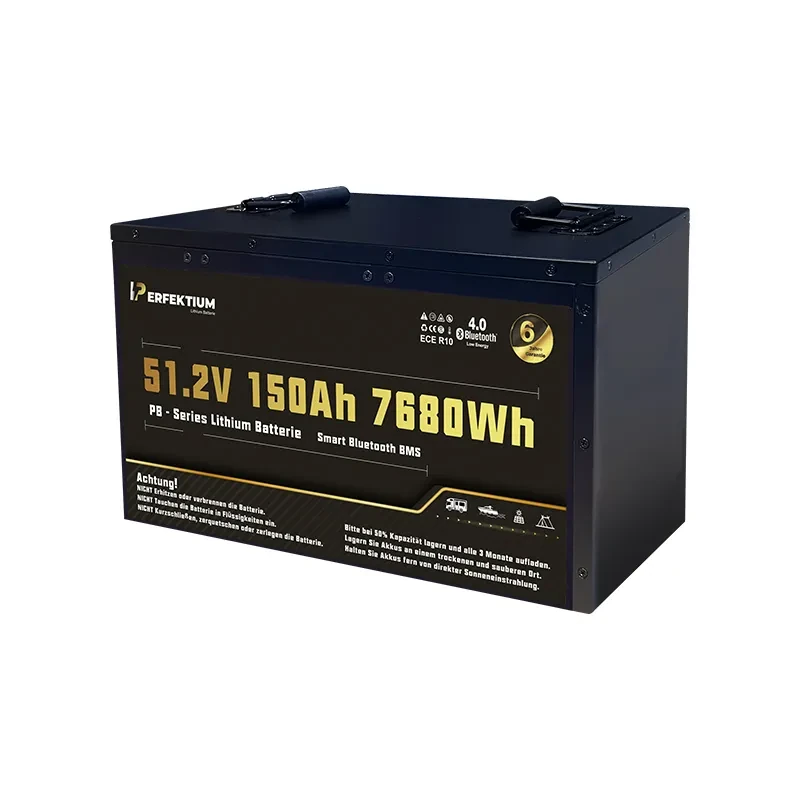

| Nominal voltage / capacity / energy | 51,2 V 150 Ah/7680Wh |
|---|---|
| Manufacturer-stated GEL/AGM replacement capacity | 51,2 V/300 Ah |
| Cell type | Prismatic cells |
| Dimensions including terminals (L × W × H) | 500*370*200mm |
| Weight excluding accessories | 57,3kg |
| Cycle life | >6000@80%D.o.D |
| Internal resistance | ≤14 mΩ |
| Recommended charge voltage | 58.4V |
| Float voltage (standby) | 55.2±0.8V |
| Recommended charge current | 45 A |
| Maximum charge current | 75 A |
| Continuous discharge current | 200 A |
| Peak discharge cut-off current | 600 A(200~500ms) |
| Operating voltage range | 40 – 58.4V |
| End-of-discharge voltage range | 40 – 44.8V |
| Terminal type | M8 |
| Ingress protection | IP64 |
| Charge temperature | 0~50°C |
| Discharge temperature | -20~75°C |
| Storage temperature | -5~35°C |
| Heater operating temperature | -35~5°C |
| Storage maintenance | Recharge every three months |
| Series and parallel connections | Parallel only, maximum four batteries |
| Manufacturer-listed conformity / transport references | CE/UL/UN38.3 /MSDS /ROHS/UN 3480/ CLASS9/ECE R10 |
| Weight | 57,3 kg |
| Dimensions (additional attributes) | 500 × 370 × 200 mm |
| Nominal capacity | 150Ah |
| Battery type | Lithium battery |
| Battery terminal | M8 |
| Case material | ABS |
| Warranty | 6 years |
| Brand | PERFEKTIUM |
| Manufacturer-listed conformity / transport references | CE, MSDS, ROHS |
PB-48-150-H
Documents & downloads
Documents are provided in the languages released by the manufacturer. The document title must match the exact model and revision being supplied.
App manualEN · BLUETOOTH-PRO-MANUAL-DE
DatasheetEN · Perfektium-Lithium-Datasheet-PB-48-150-H-EN
ManualEN · Instructions - EN
WarrantyEN · Warranty-PF&PB-EN
App setupDE · Perfektium Bluetooth Pro APP Download INSTRUCTIONS
App manualDE · Perfektium LiFePO4 Akku Bluetooth Pro APP Handbuch- DE
DatasheetDE · Perfektium-Lithium-Datenblatt-PB-48-150-H-DE
DatasheetDE · PB-48-150-H-DE
DatasheetFR · PB-48-150-H-FR
ManualDE · Handhabung und Verwendungshinweise-DE
ManualFR · Mode d'emploi - FR
ManualIT · Istruzioni - IT
WarrantyDE · Garantie- Perfektium PF&PB Serie- DE
Warranty terms vary by product. Refer to the applicable manufacturer document; coverage, installation conditions and exclusions must be checked for your model.
View original product page ↗Manufacturer download centre ↗Source checked: 29 October 2026
