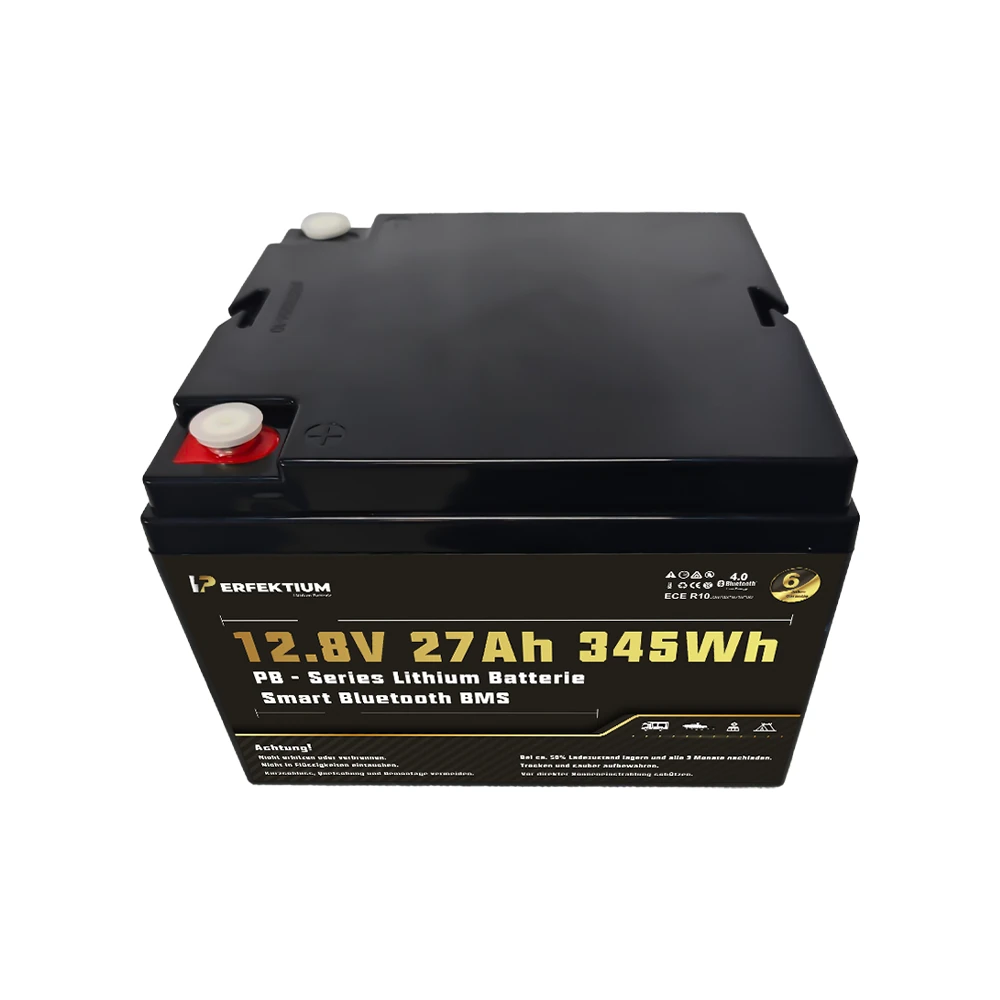

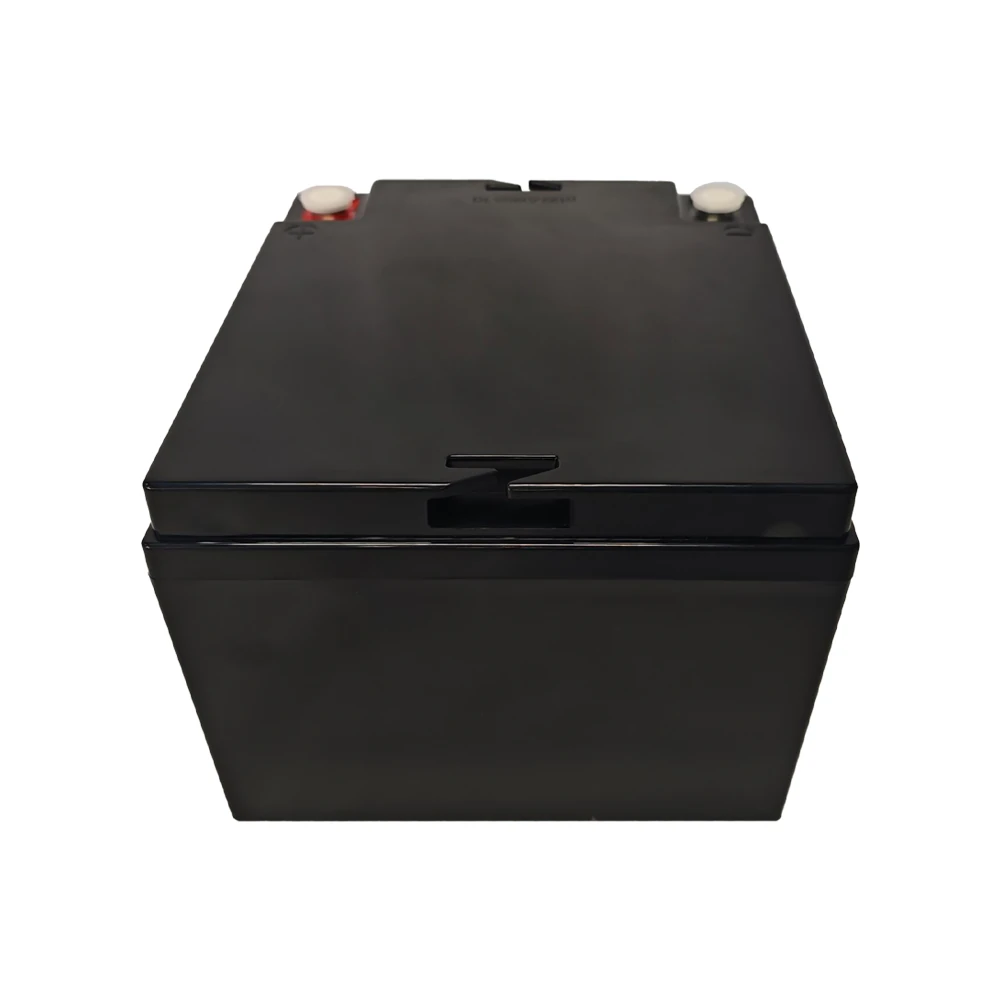

PB-12-27

Accumulo per applicazioni marine, solari, ricreative e di riserva. Abbina batteria e BMS ai carichi e al sistema di ricarica.

Bluetooth

Su richiestaDisponibilità su richiesta

Prezzo al dettaglio, spedizione e tempi sono confermati nel preventivo.

Modello / SKU: PB-12-27

In breve

Specifiche tecniche

Specifiche del produttore (EN)

Caratteristiche del produttore (EN)

Nominal voltage / capacity / energy	12,8 V 27 Ah/345Wh
Manufacturer-stated GEL/AGM replacement capacity	12,8 V 54 Ah
Cell type	Prismatic cells
Dimensions including terminals (L × W × H)	175175120mm
Weight excluding accessories	3,6kg
Cycle life	>6000@80%D.o.D
Internal resistance	≤5 mΩ
Recommended charge voltage	14.6V
Float voltage (standby)	13.8±0.8V
Recommended charge current	5.4 A
Maximum charge current	27 A
Continuous discharge current	135 A
Peak discharge cut-off current	300 A 2S/200 A 7s
Operating voltage range	10- 14.6V
End-of-discharge voltage range	10- 11.2V
Terminal type	M6
Ingress protection	IP65
Charge temperature	0~45°C
Discharge temperature	-10~60°C
Storage temperature	-5~35°C
Storage maintenance	Recharge every three months
Series and parallel connections	Maximum four batteries in series and four in parallel
Manufacturer-listed conformity / transport references	CE/UL/UN38.3 /MSDS /ROHS/UN 3480/ CLASS9/ECE R10
Weight	3,6 kg
Dimensions (additional attributes)	175 × 175 × 120 mm
Battery terminal	M6
System voltage	12V
Battery type	Lithium battery
Warranty	6 years
Brand	PERFEKTIUM
Nominal capacity	27Ah
Manufacturer-listed conformity / transport references	CE, MSDS, ROHS
