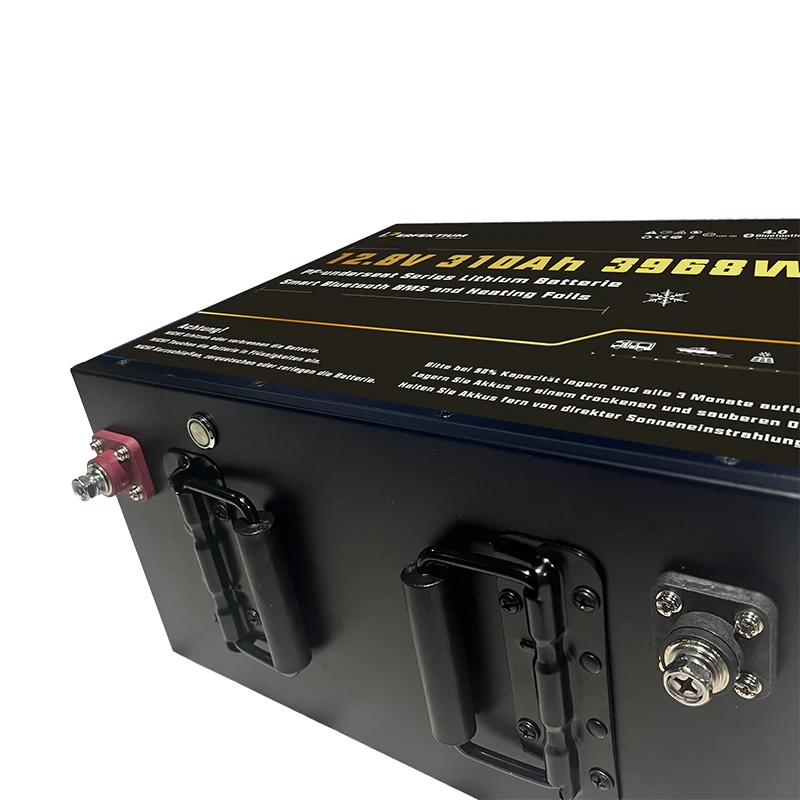

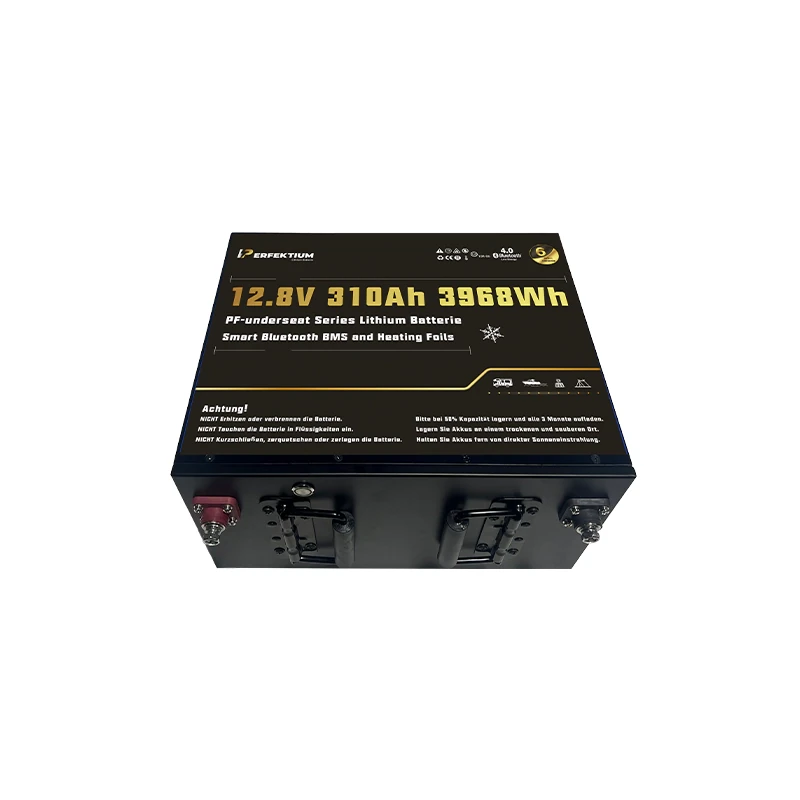

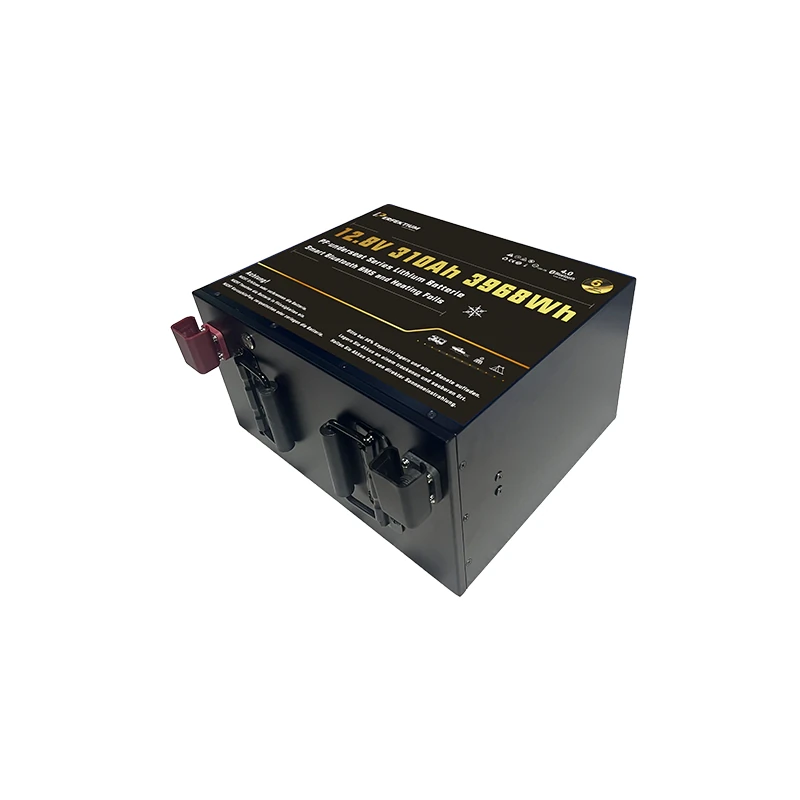

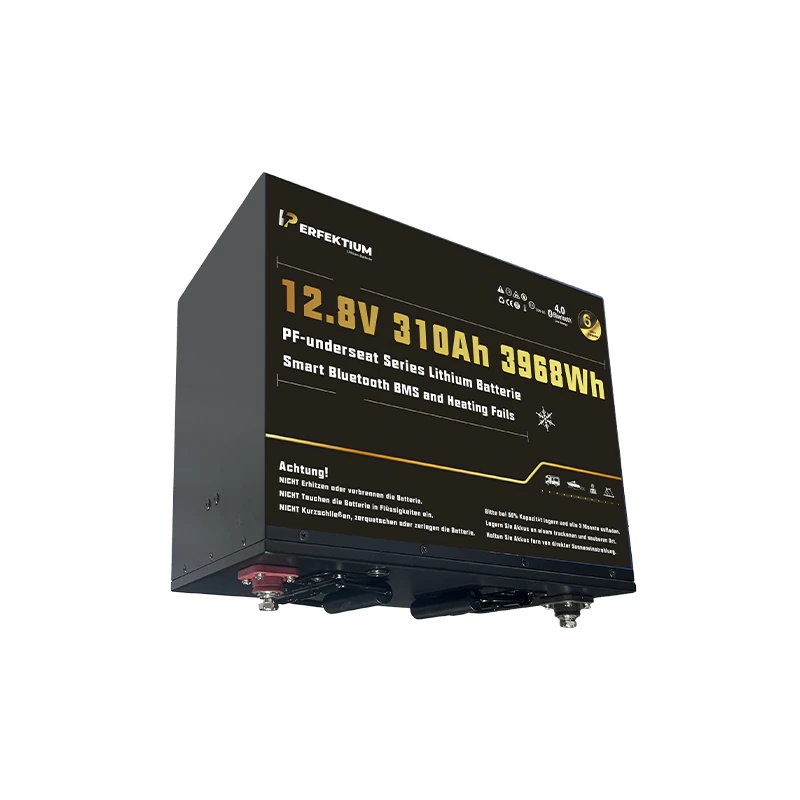

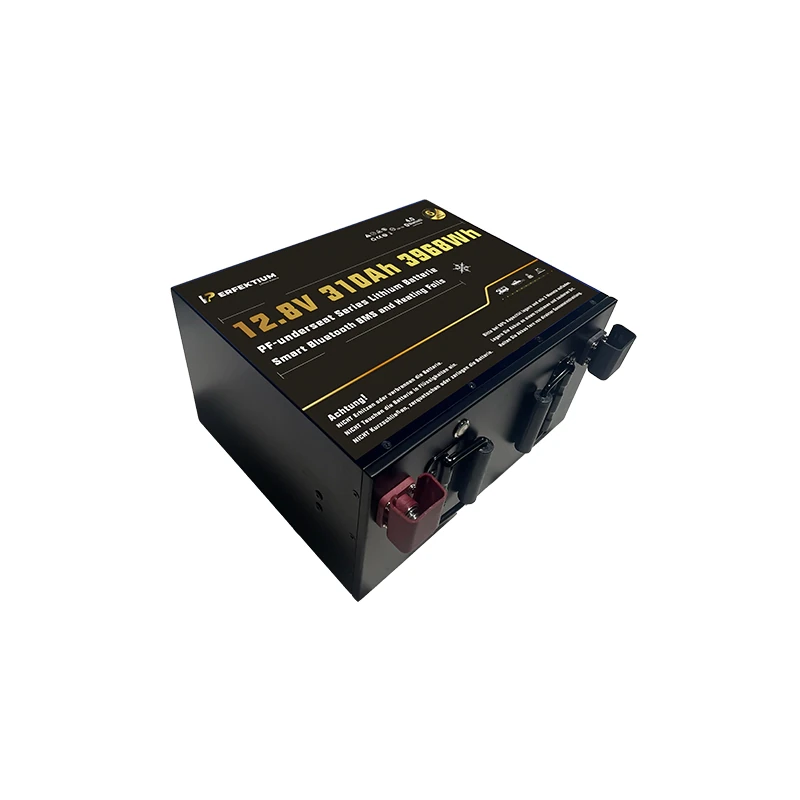

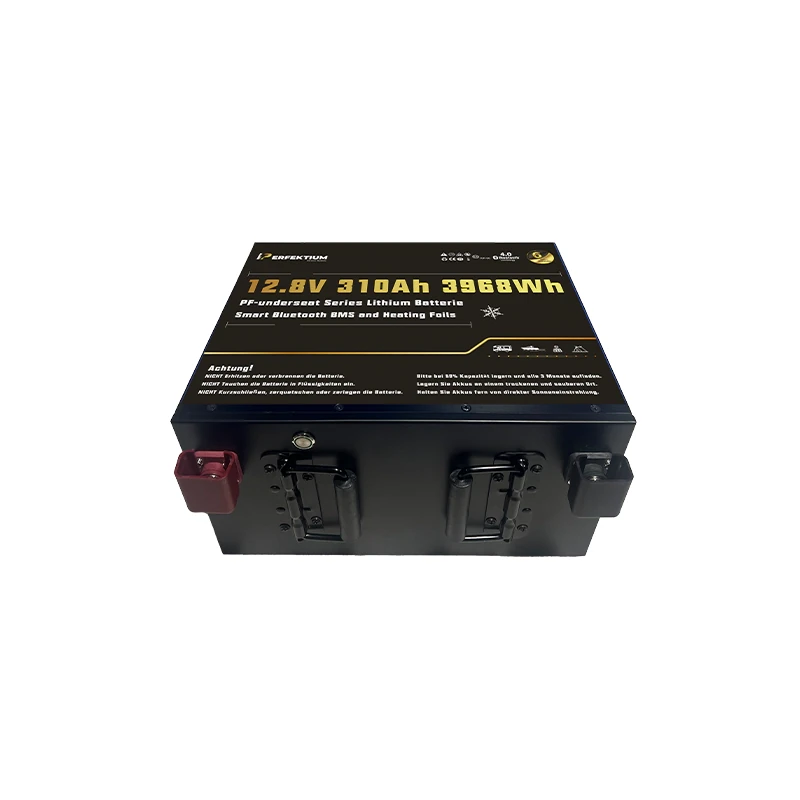

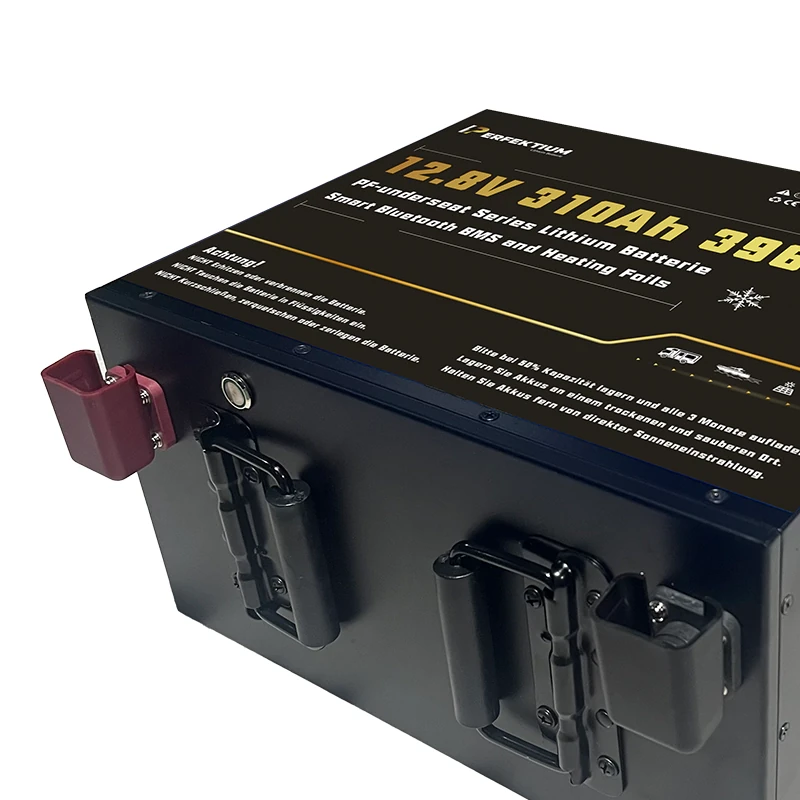

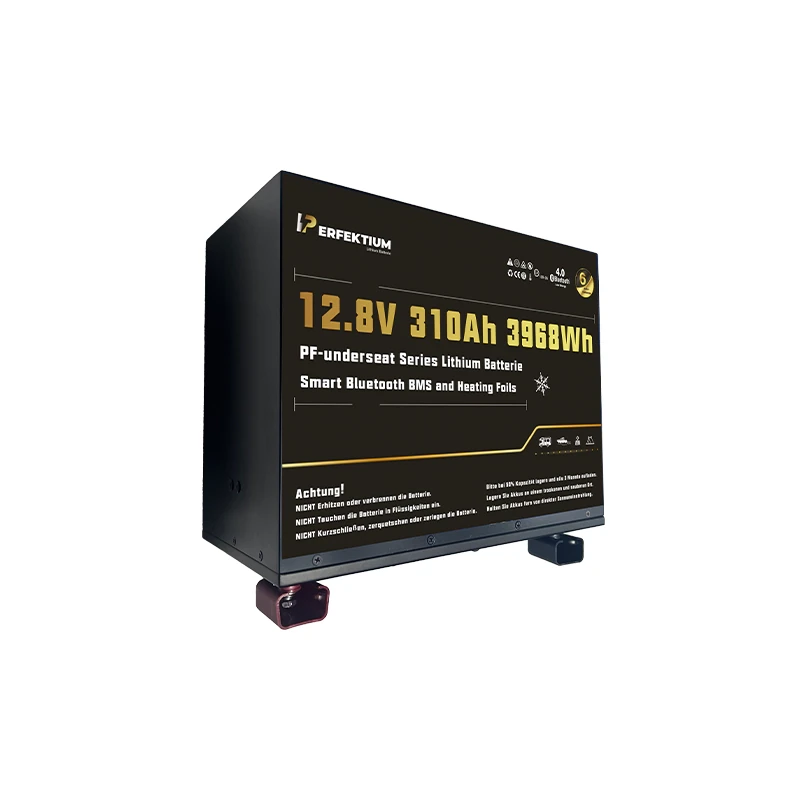

PF-Underseat-12-310H

Kompaktne baterije za kampere i ugradnje u kojima raspoloživi prostor određuje izvedbu.

Grijanje Bluetooth

Na upitDostupnost na upit

Maloprodajna cijena, dostava i rok isporuke potvrđuju se ponudom.

Model / SKU: PF-Underseat-12-310H

Pregled

Tehničke specifikacije

Specifikacije proizvođača (EN)

Značajke proizvođača (EN)

Nominal voltage / capacity / energy	12,8 V 310 Ah/3968Wh
Manufacturer-stated GEL/AGM replacement capacity	12,8 V 620 Ah
Cell type	Prismatische Grade-A Zelle
Dimensions including terminals (L × W × H)	355288190mm
Weight excluding accessories	30,1kg
Cycle life	>6000@80%D.o.D
Internal resistance	≤7 mΩ
Recommended charge voltage	14.6V
Float voltage (standby)	13.8±0.8V
Recommended charge current	90 A
Maximum charge current	155 A
Continuous discharge current	300 A
Peak discharge cut-off current	640 A (200~500ms)
Operating voltage range	10 – 14.6V
End-of-discharge voltage range	10 – 11.2V
Terminal type	M8
Ingress protection	IP62
Charge temperature	0~50°C
Discharge temperature	-20~75°C
Storage temperature	-5~35°C
Heater operating temperature	-35~5°C
Storage maintenance	Recharge every three months
Series and parallel connections	Maximal 4 Stück in Reihe / 4 Stück in Parallel
Manufacturer-listed conformity / transport references	CE/UL/UN38.3/MSDS/ROHS/UN 3480/CLASS9/ECE R10
Weight	30,1 kg
Dimensions (additional attributes)	355 × 288 × 190 mm
System voltage	12V
Nominal capacity	310Ah
Battery type	Lithium battery
Battery terminal	M8
Case material	Metall
Warranty	6 years
Brand	PERFEKTIUM
Manufacturer-listed conformity / transport references	CE, MSDS, ROHS
GTIN	8711727037119
