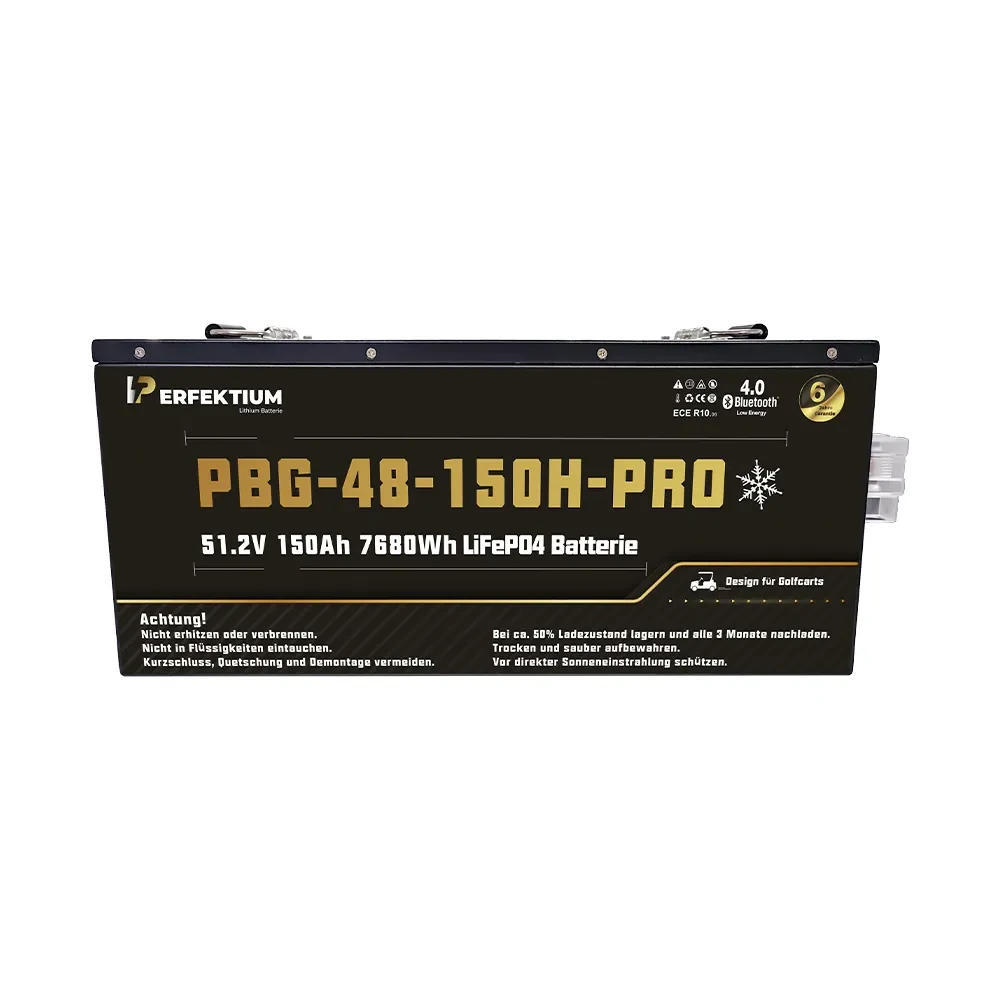

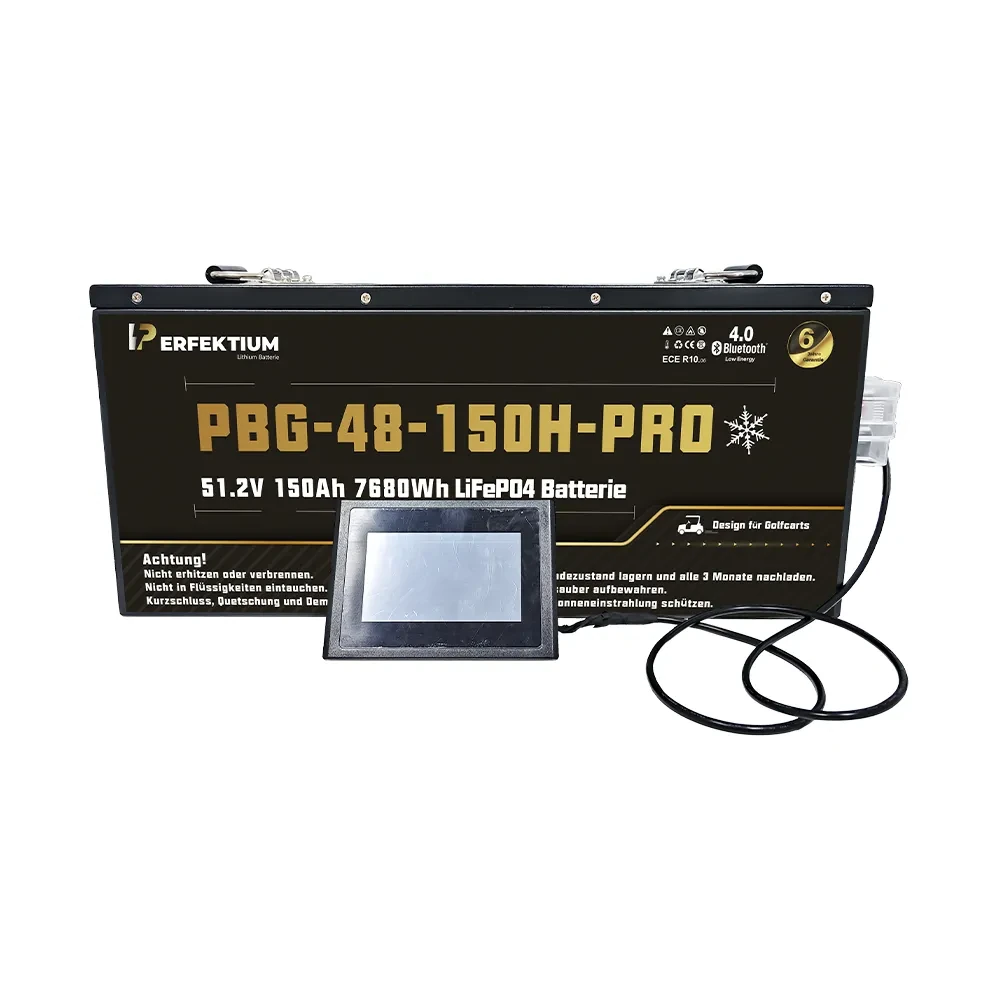

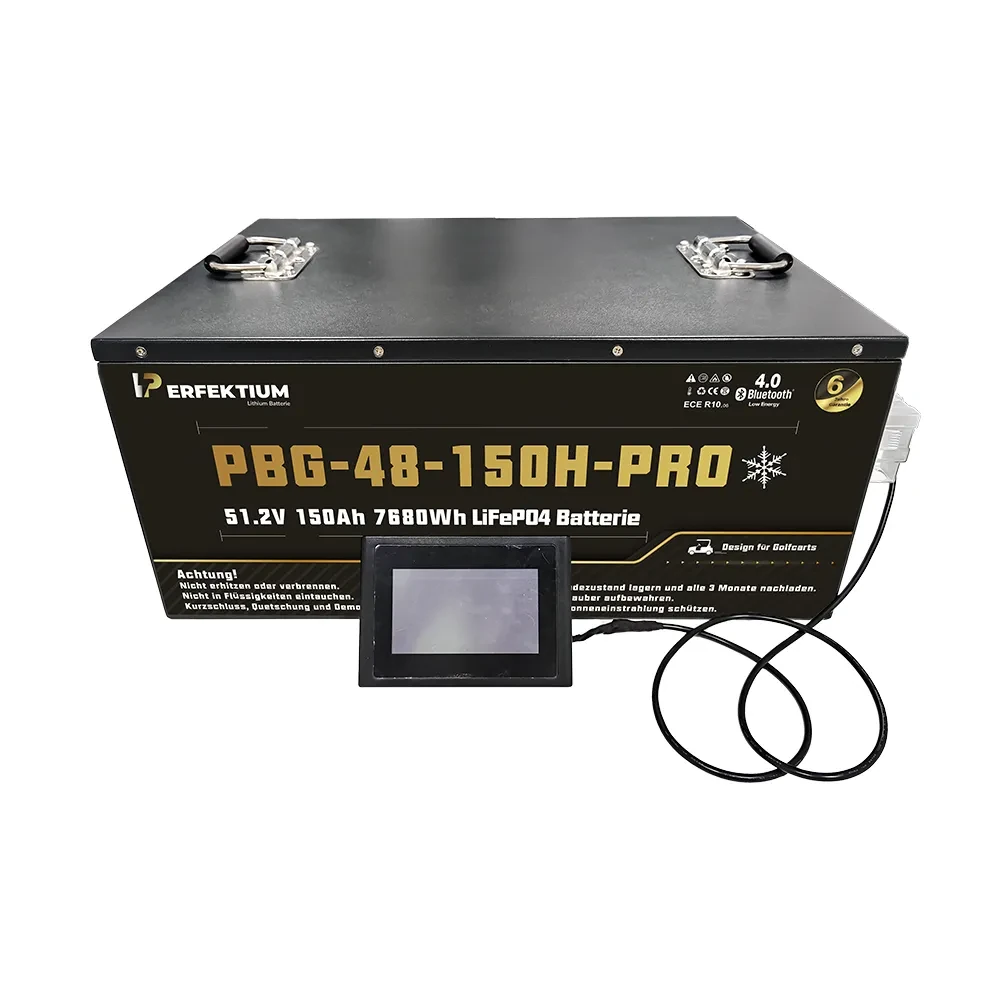

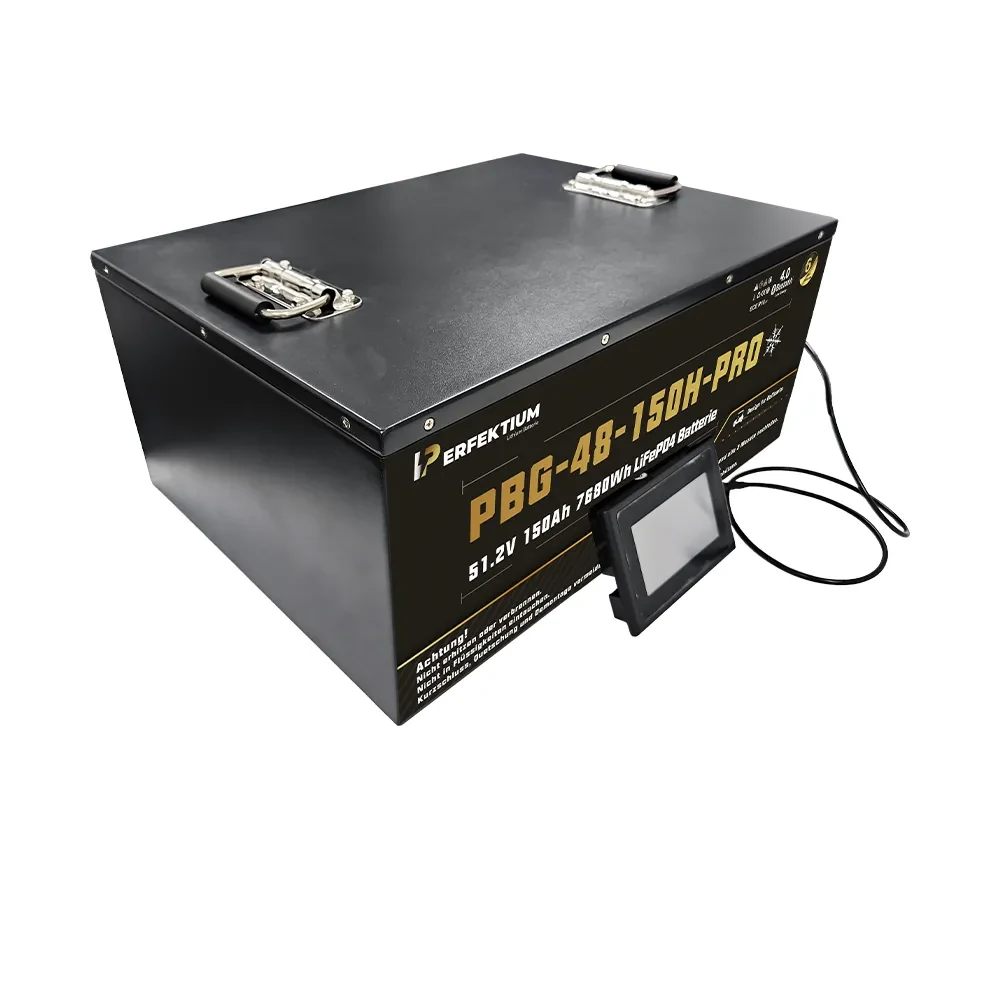

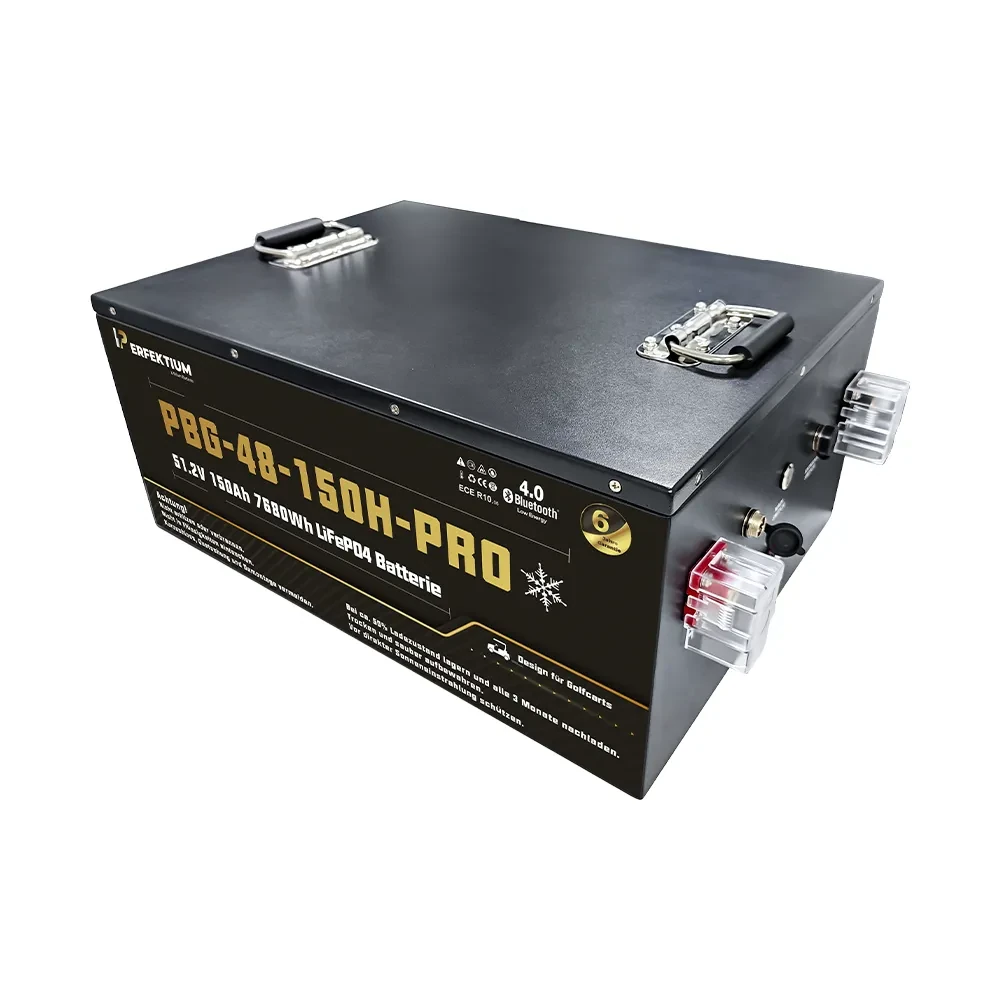

PBG-48-150H-PRO

Pogonske baterije za kompatibilna golf i električna vozila. Potvrdite regulator, punjač i zahtjeve vršne struje.

Grijanje Bluetooth

Na upitDostupnost na upit

Maloprodajna cijena, dostava i rok isporuke potvrđuju se ponudom.

Model / SKU: PBG-48-150H-PRO

Pregled

Tehničke specifikacije

Specifikacije proizvođača (EN)

Značajke proizvođača (EN)

Nominal voltage / capacity / energy	51,2 V 150 Ah/7680Wh
Manufacturer-stated GEL/AGM replacement capacity	51,2 V/300 Ah
Cell type	Prismatic cells
Dimensions including terminals (L × W × H)	530360230mm
Weight excluding accessories	62,6kg
Cycle life	>6000@80%D.o.D
Internal resistance	≤14 mΩ
Recommended charge voltage	58.4V
Float voltage (standby)	55.2±0.8V
Recommended charge current	30 A
Maximum charge current	200 A
Continuous discharge current	200 A
Peak discharge cut-off current	300 A (10s)
Operating voltage range	40 – 58.4V
End-of-discharge voltage range	40 – 44.8V
Terminal type	M8
Ingress protection	IP54
Charge temperature	0~45°C
Discharge temperature	-20~60°C
Storage temperature	0~40°C
Heater operating temperature	-35~5°C
Storage maintenance	Recharge every three months
Series and parallel connections	Maximum four batteries in series and four in parallel
Manufacturer-listed conformity / transport references	CE/UL/UN38.3 /MSDS /ROHS/UN 3480/ CLASS9/ECE R10
Weight	62,6 kg
Dimensions (additional attributes)	530 × 360 × 230 mm
Battery type	Lithium battery
Battery terminal	M8
System voltage	48V
Warranty	6 years
Brand	PERFEKTIUM
Nominal capacity	200Ah
